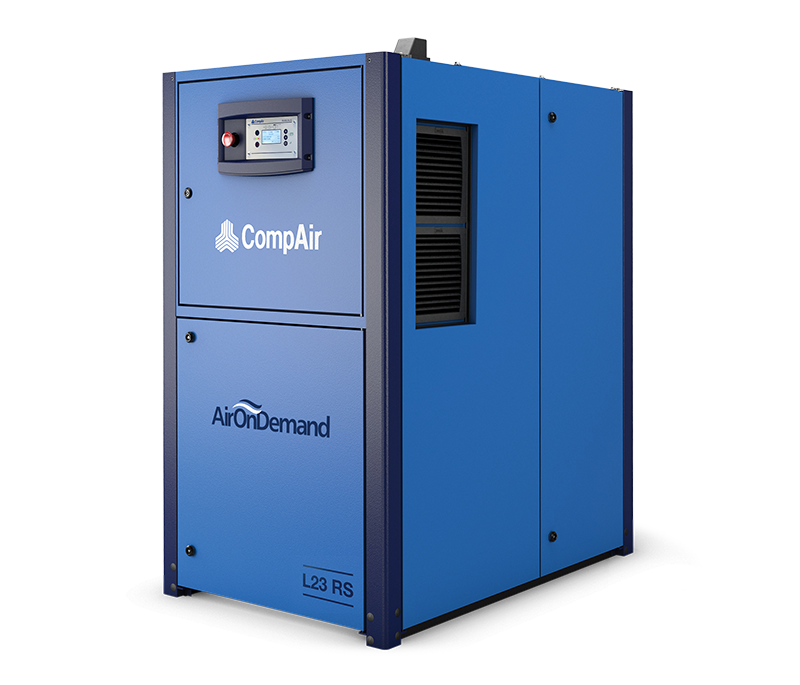

L23 RSv2_Delcos_Pro_SE

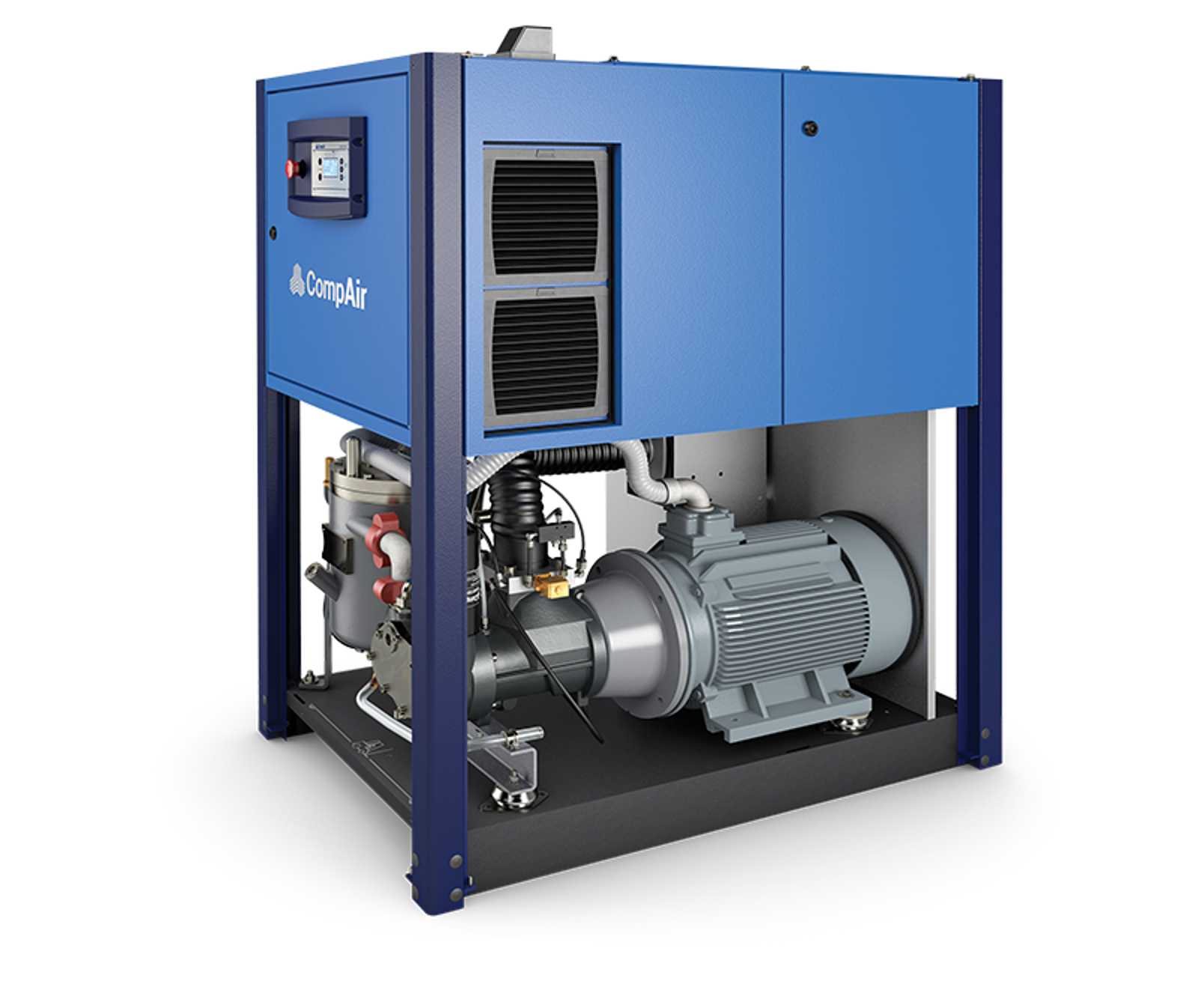

RS internal Delcos Pro SE image

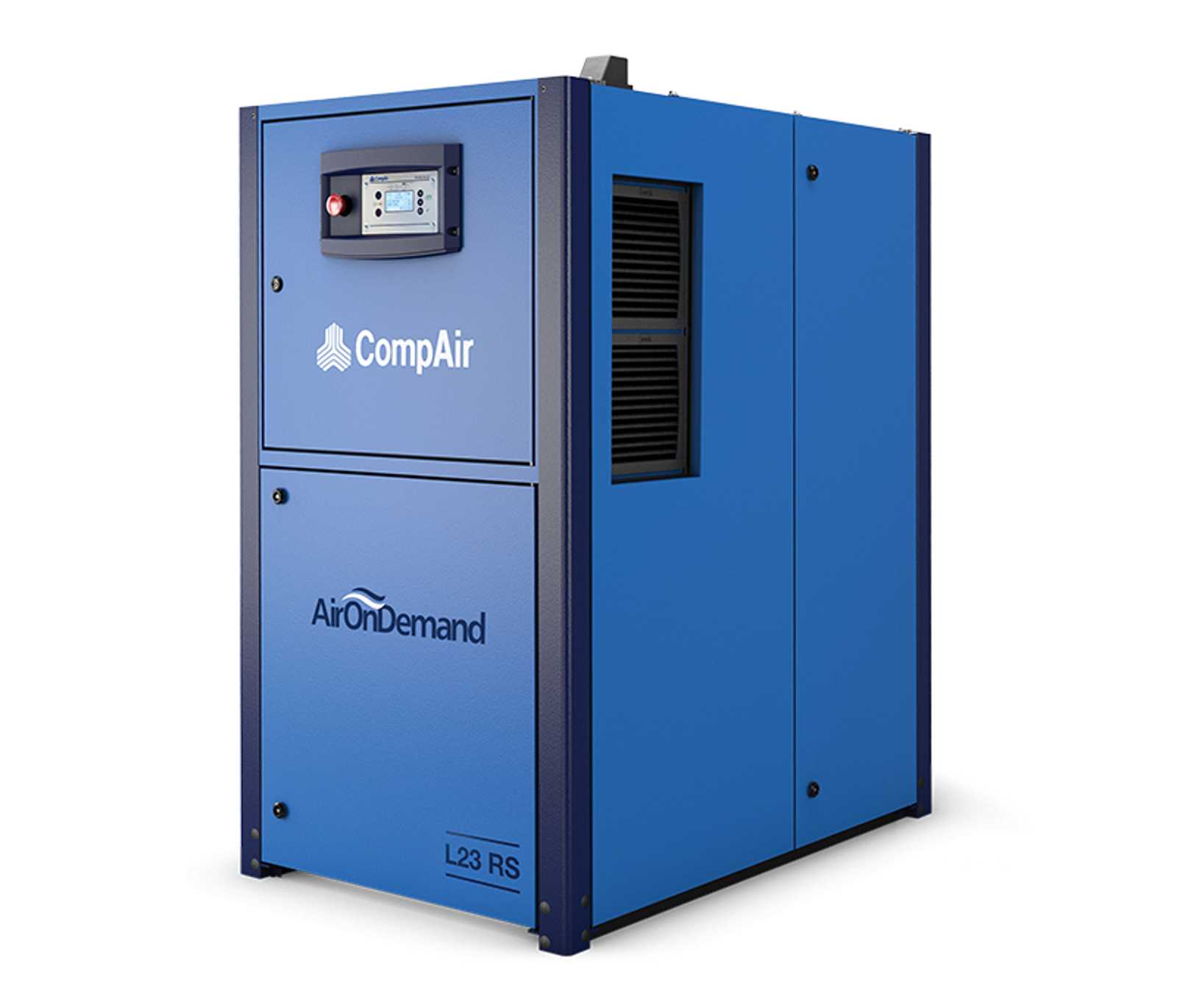

L23 RSv2_Delcos_Pro_SE
RS internal Delcos Pro SE image
Back to the product list

Lubricated Rotary Screw Compressor 22 - 30 kW

CompAir L23 - L29, RS

The L-Series from CompAir

Well known in the industry for quality and reliability CompAir continuously develops the L-Series achieving cutting edge performance and efficiency. The L23-L29 range of lubricated screw compressors comprises of fixed speed and regulated speed (RS) models.

Engineering Excellence

Benefits to you:

  • High reliability and high quality compressed air
  • Superior energy efficiency
  • High flexibility
  • Small footprint
  • Low maintenance & servicing costs
  • Engineering excellence
  • Premium efficiency airend
  • Time proven inverter concept
  • iConn industry 4.0 Solution
  • Integrated heat recovery
  • Water Separator
  • Compressed Air Filter
  • Condensate Drain Solution
  • Compressed Air Refrigerant Dryer
  • Heatless Desiccant Dryers
  • Heat Regenerative Desiccant Dryers
  • Nitrogen Generator
  • SmartAir Master Multi Compressor Controllers

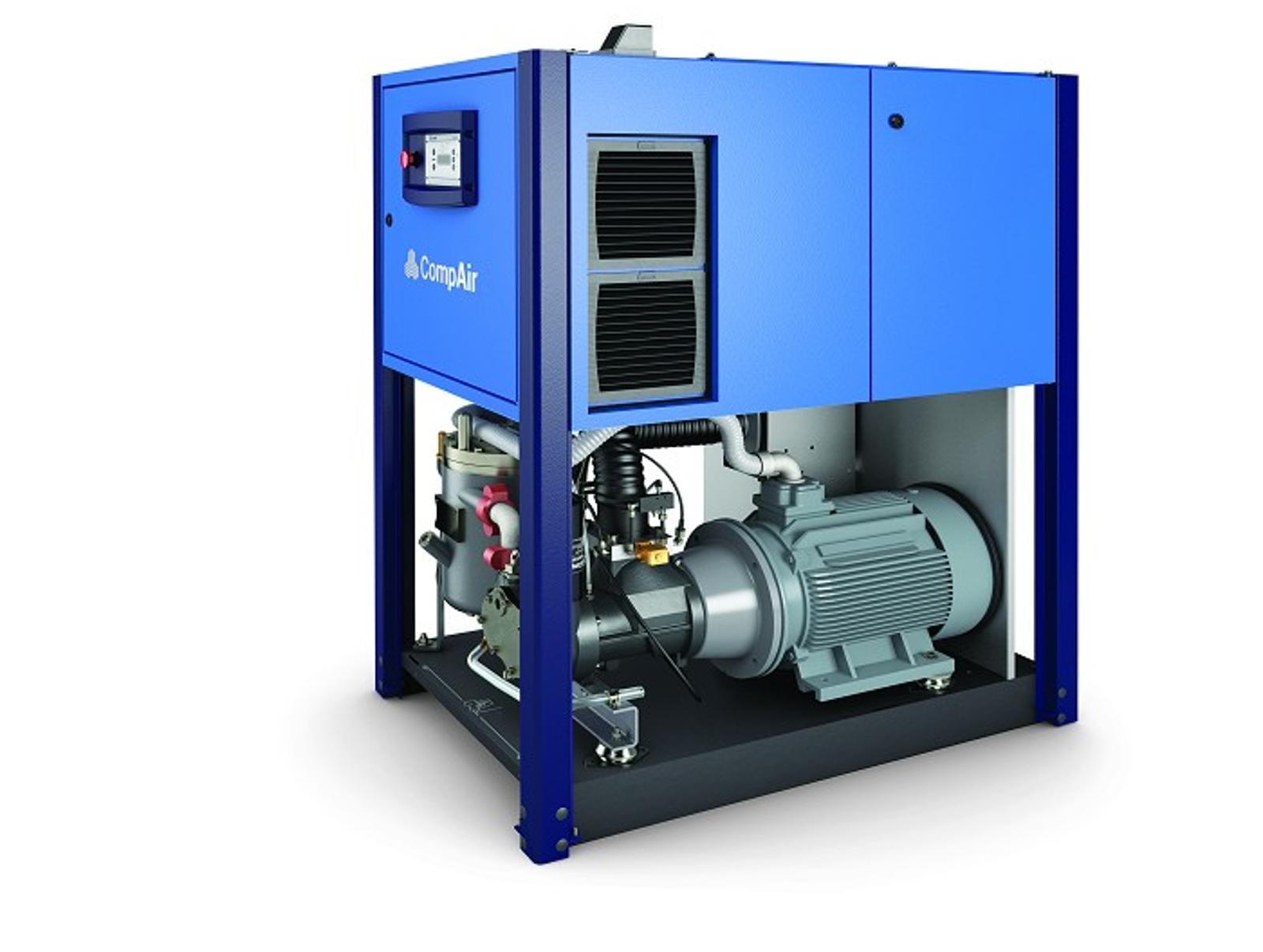

35963_31_8_19_L23_INTERNALSV2_m

A Design Concept Based on Quality

  • Large Surface after Cooler
  • High Performance Separator Filter
  • High Efficiency Electric Motor
  • Thermostatically Controlled Motor Driven Fan
  • Highest Quality Connections

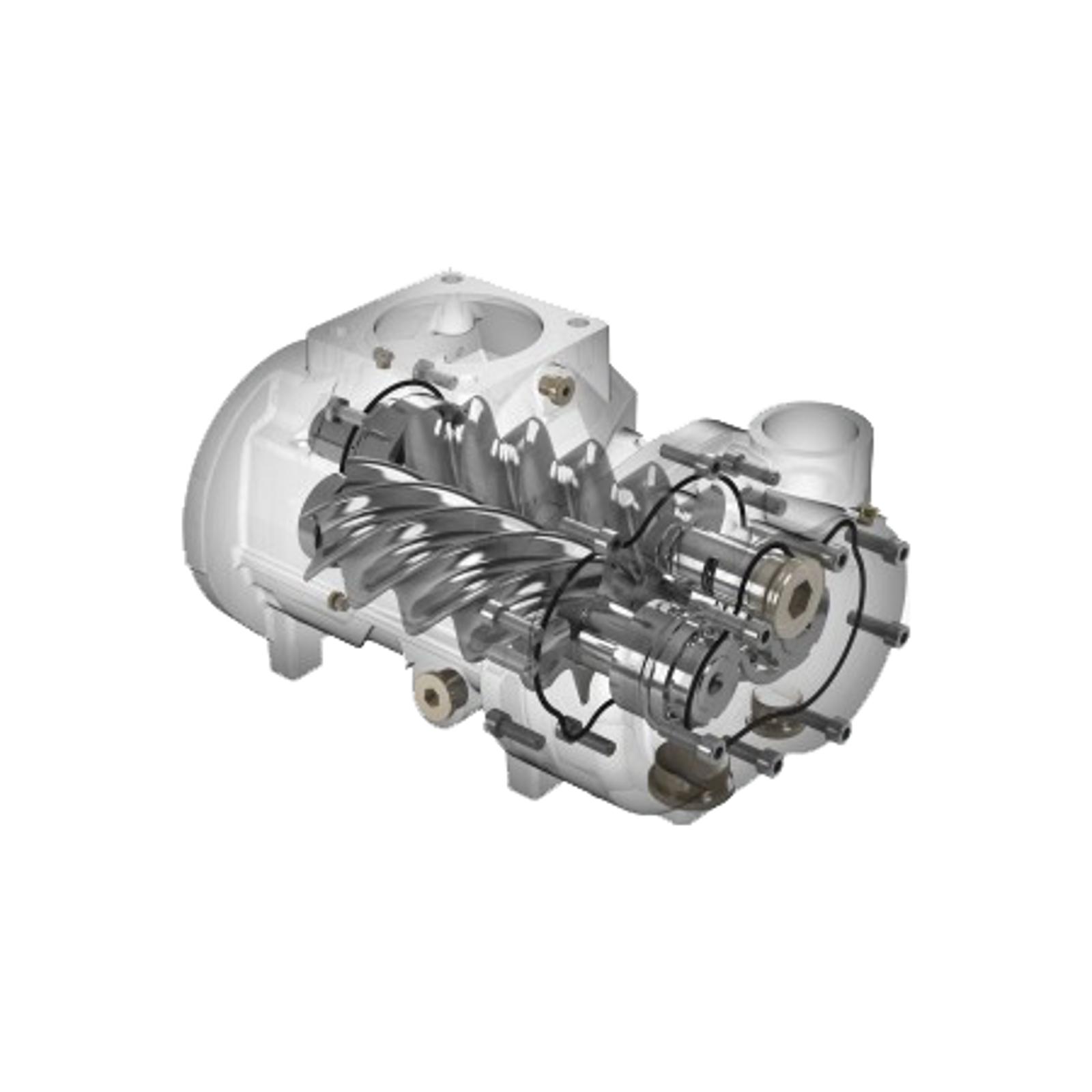

inside of L23 Fixed speed rotary screw compressor

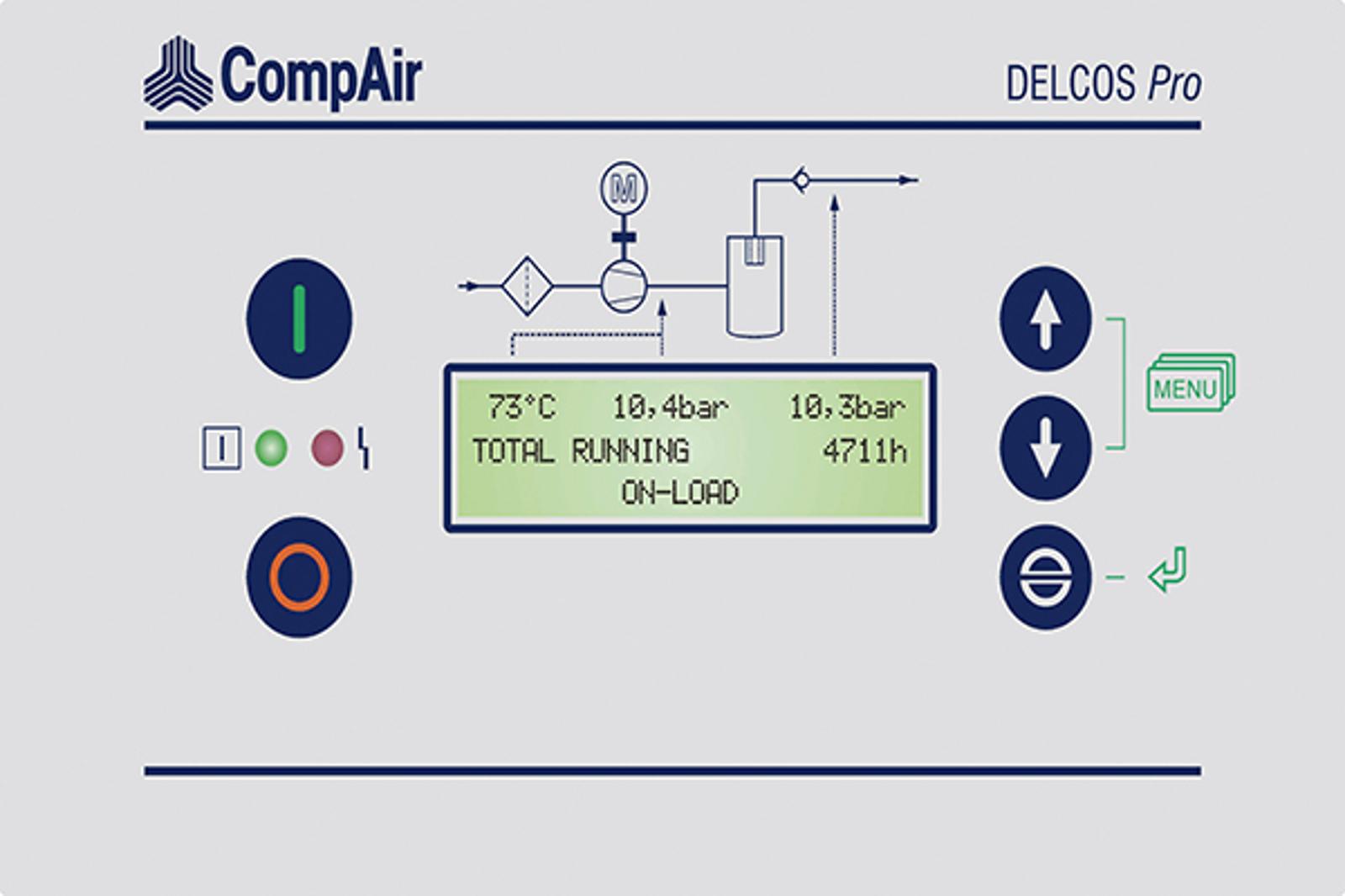

Delcos Pro Compressor Controller

The control system ensures reliable operation and protects the investment by continuously monitoring operational parameters. The Delcos Pro also has the capability to have programmable inputs and outputs, control additional equipment as well as providing the all relevant information in clear readable text:

  • Discharge/line pressure display
  • Air/oil temperature display
  • Total hours run and under load
  • Service due indicator
  • Enhanced fault log monitor
  • Real time clock
  • Timer controlled stop/start
  • Remote start/stop
  • Auto restart after power failure
  • Second pressure setting
  • Status indication
  • RS485 - Modbus RTU

The pressure setting can be easily adjusted via the controller.

Delcos Pro Control

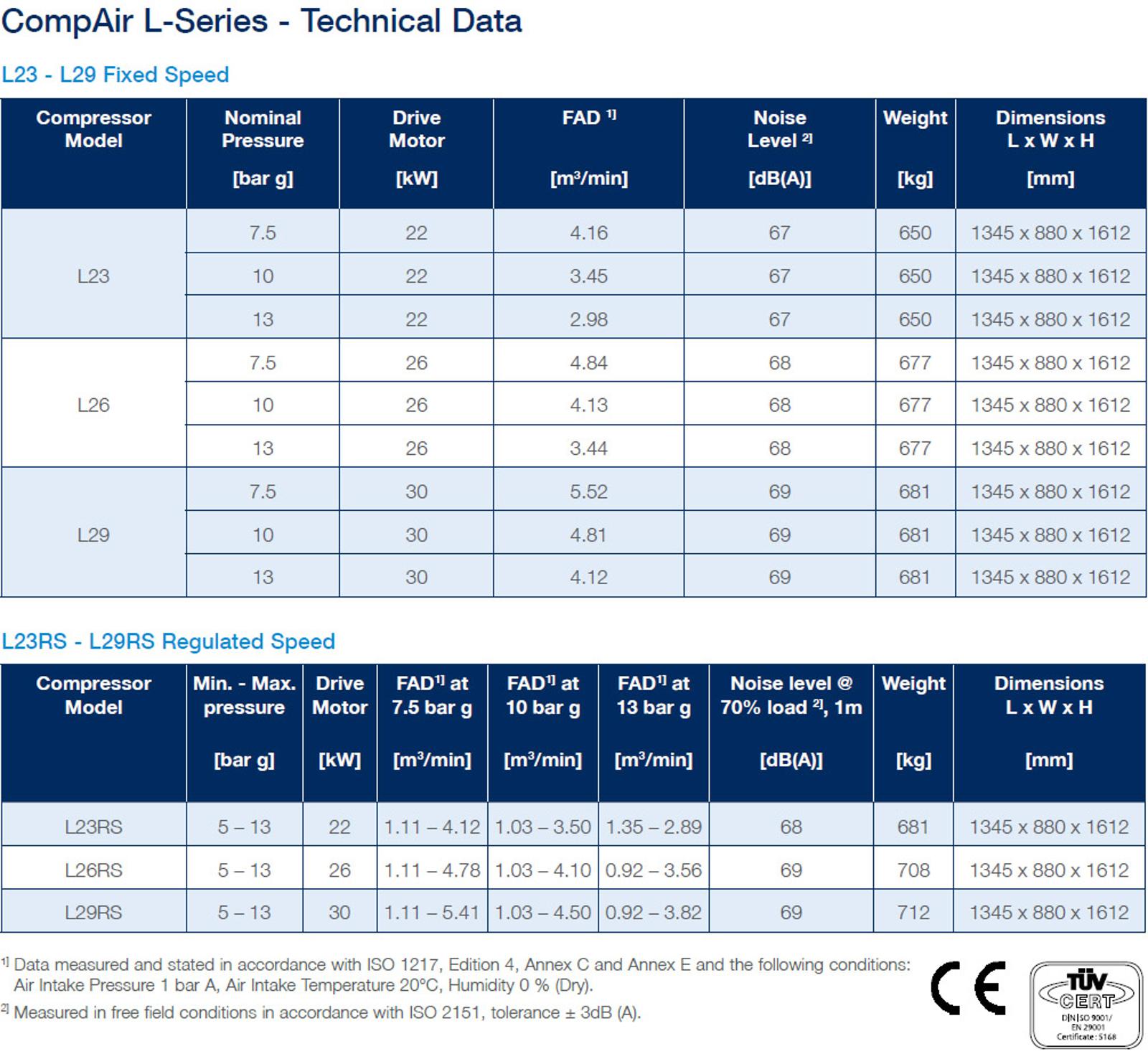

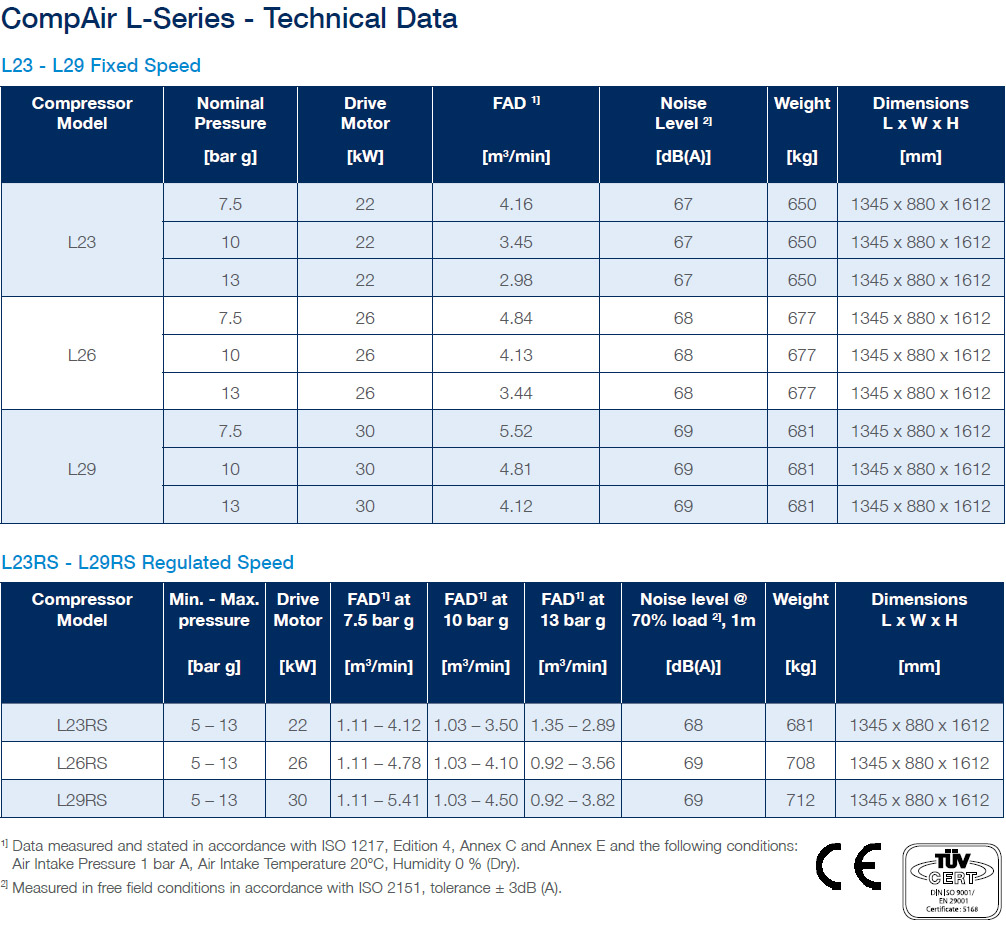

l23 l29_frame2plus_data en new

BROCHURE
