This compressor series is characterised by its low diesel consumption, which is 10 % lower than that of previous models. Equipped with a diesel particulate filter and FPM (Flexible Power Management), the modern compressors comply with the EU Stage V emissions standard. Pressure variants up to 14 bar make this compact series extremely versatile and fulfil the requirements of numerous applications. The tool storage space under the bonnet offers room for two hammers, pointing irons or other pneumatic tools. Separate air filters for the motor and compressor ensure a long service life. All maintenance points are easily accessible.
Features | Benefits |
Yanmar 4TNV98CT with exhaust stage EU V | Future-proof investment with the latest and most economical technology |
High efficiency airend, designed and manufactured in our own facility in Germany | Low consumption of engine power, energy and fuel |
Mobile 5 program: up to 5 years warranty on the package except engine | Operational safety with warranty |
Bolted single sheets. Galvanised, electrostatically powder-coated | Quick and economical to replace when damaged. Excellent protection against corrosion |

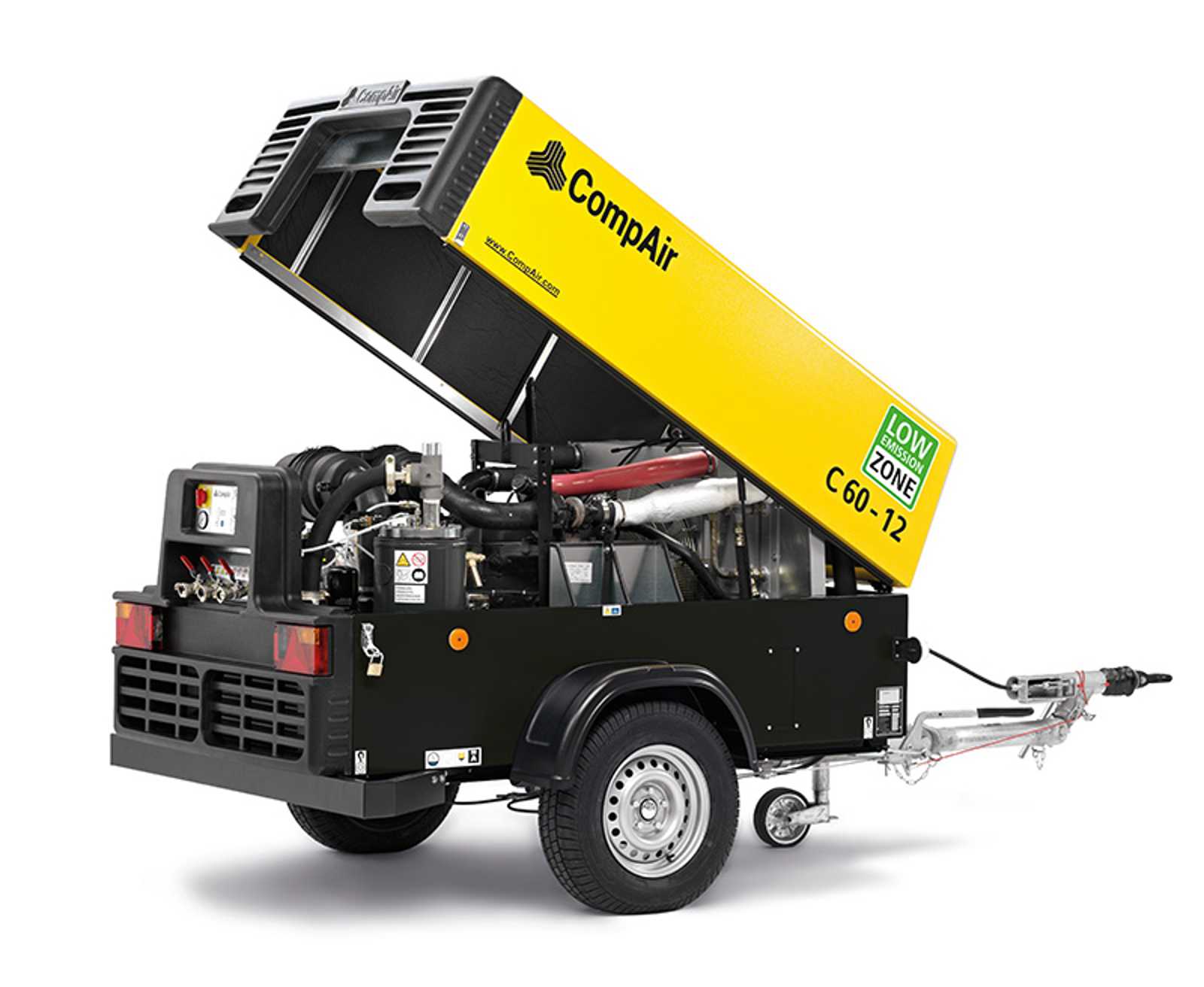

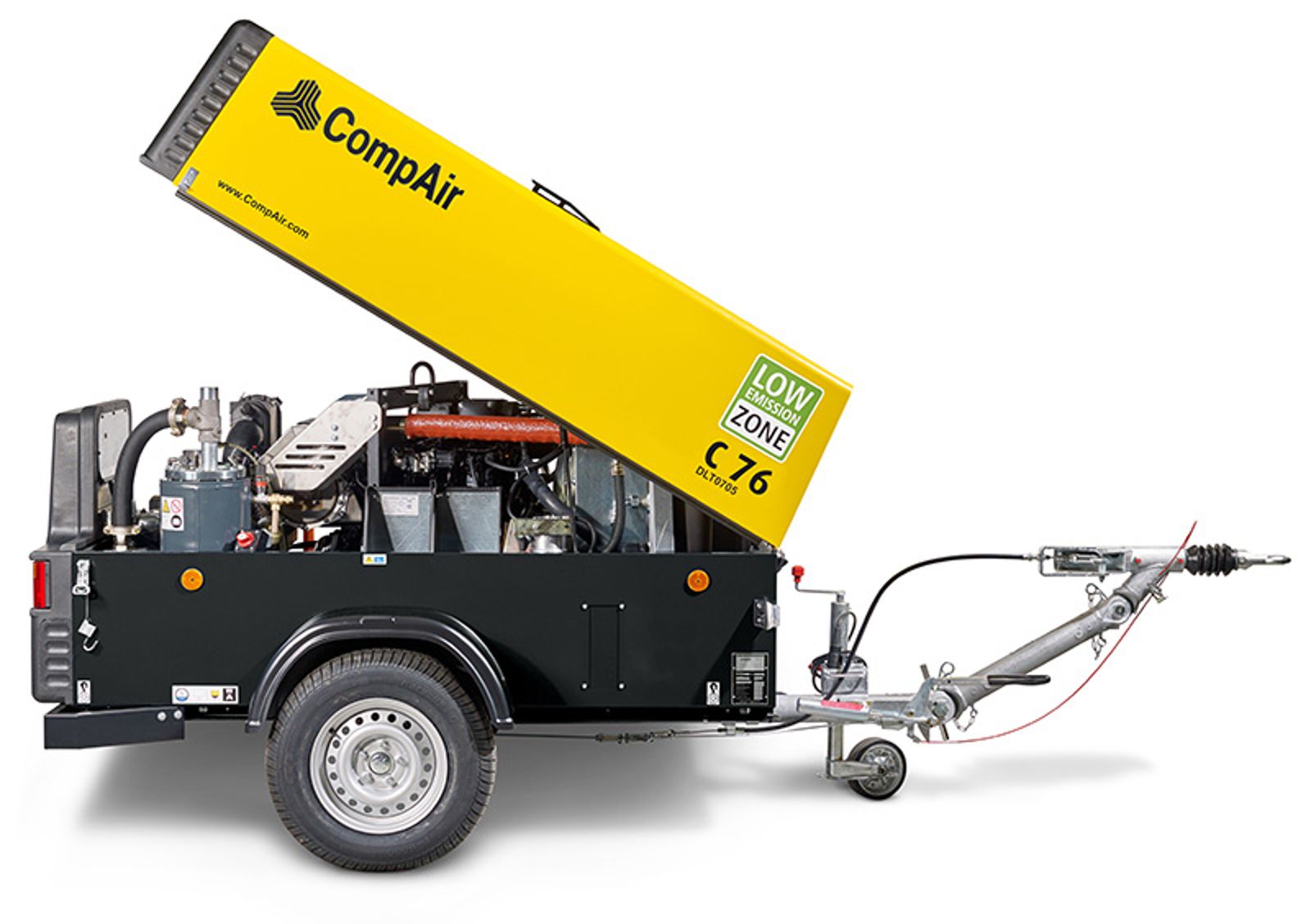

Hinged hood with two robust gas springs | Good accessibility for maintenance |
Robust plastic protection | Robust plastic protection |
Optional compressed air filtration | Technically oil-free in accordance with ZTV-ING Part 3 Section 4 |
Standard fuel pre-filter with water separator | Long engine service life thanks to effective separation of water and dirt |
Separate air filters for engine and compressor with safety element | Long filter lives, long maintenance intervals and high operational reliability |
Volume flow control | Engine speed and suction control are automatically adapted to the compressed air requirement |
Oil filter is screwed onto the compressor block | Enables quick, easy maintenance |
Main electrical cut-off switch inside the compressor enclosure | Protects against misuse |
Standard battery main switch | Protects battery during longer breaks |
Standard oil temperature control valve | Reduces freezing of connected tools at low temperatures Use at – 10 to +45°C ambient temperature |
Central lifting eye | Easy to relocate, transport via crane or helicopter |
Transparent fuel tank | Designed for one-shift operation at full load. Allows direct visual level i ndication and quick contamination checks |
FPM Flexible Powermanagement | Extended application possibilities due to delivery volume adjustment during pressure adjustment |
- Integrated aftercooler and heat exchanger with automatic condensate separation and with/without subsequent compressed air heating
- Chalwyn valve
- Exhaust gas spark arrestor
- Ultra-fine filter for oil separation in accordance with ZTV-Ing Part 3 Para. 4
- Hose reel with 20 m ¾" hose
- Generator enables additional operation of electrical devices (only generator or compressor operation possible)
- Pilot air lubricator to prevent the risk of freezing at low temperatures
- Engine winter kit for better starting behaviour at low temperatures
- Remote start/stop device
- Mounting frame for installation on lorries
- Skid frame for stationary installation on construction sites
- Closed floor pan for use in water protection areas
- Customer colours
