Lubricated Rotary Screw Compressor 75 kW

The upgraded 75kW screw compressors from CompAir have only a 2.23m² footprint for easier installation in more restrictive locations.

The newly redesigned models offer quick release panel access for easier servicing, redesigned & improved service parts like separators & filters. With an efficiency improvement of up to 6.8%, and a higher flow rate up to 6% from the brand new airends, this improved performance and space saving ability delivers significantly lower lifetime costs.

Designed & manufactured at the centre of excellence in Germany, the latest changes represent a continuing improvement to a range which has been developed over many decades.

Outstanding Benefits

The new compressors are available in both fixed and regulated speeds – which can help reduce a system’s total cost of ownership significantly – as well as air-cooled and water-cooled options.

Pressure range : 5 to 13 bar

Volume flow : 2.1 - 14.9 m³/min

Motor power : 75 kW

The new models offer the following improvements:

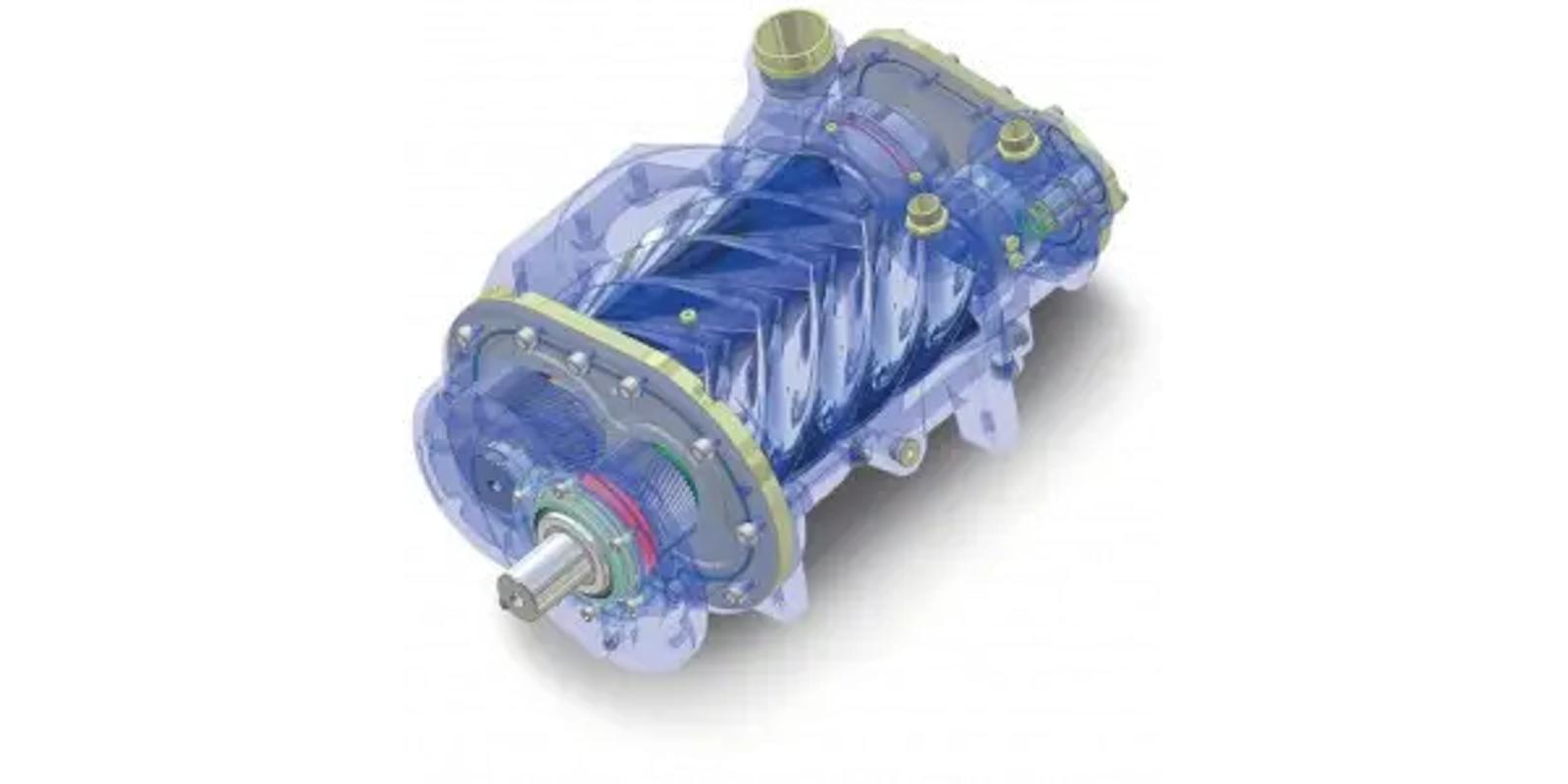

• Re designed GD6 semi integrated airend with better performance that can reach 5-6 % improvement  at high speed
• 3-8% efficiency improvement for complete package standard models.
• Smaller footprint by 11% compared to old models
• Implementation of new automatic oil regulation valve for variable speed models provides better efficiency
• New fine separator with 1 integrated seal , easy maintenance – no need to remove and re install o-rings
• Sheet metal free of welding. All doors hinged to ease maintenance and reduce installation space. Easy access on the machines from all points.
