Oil Free Rotary Screw Compressor

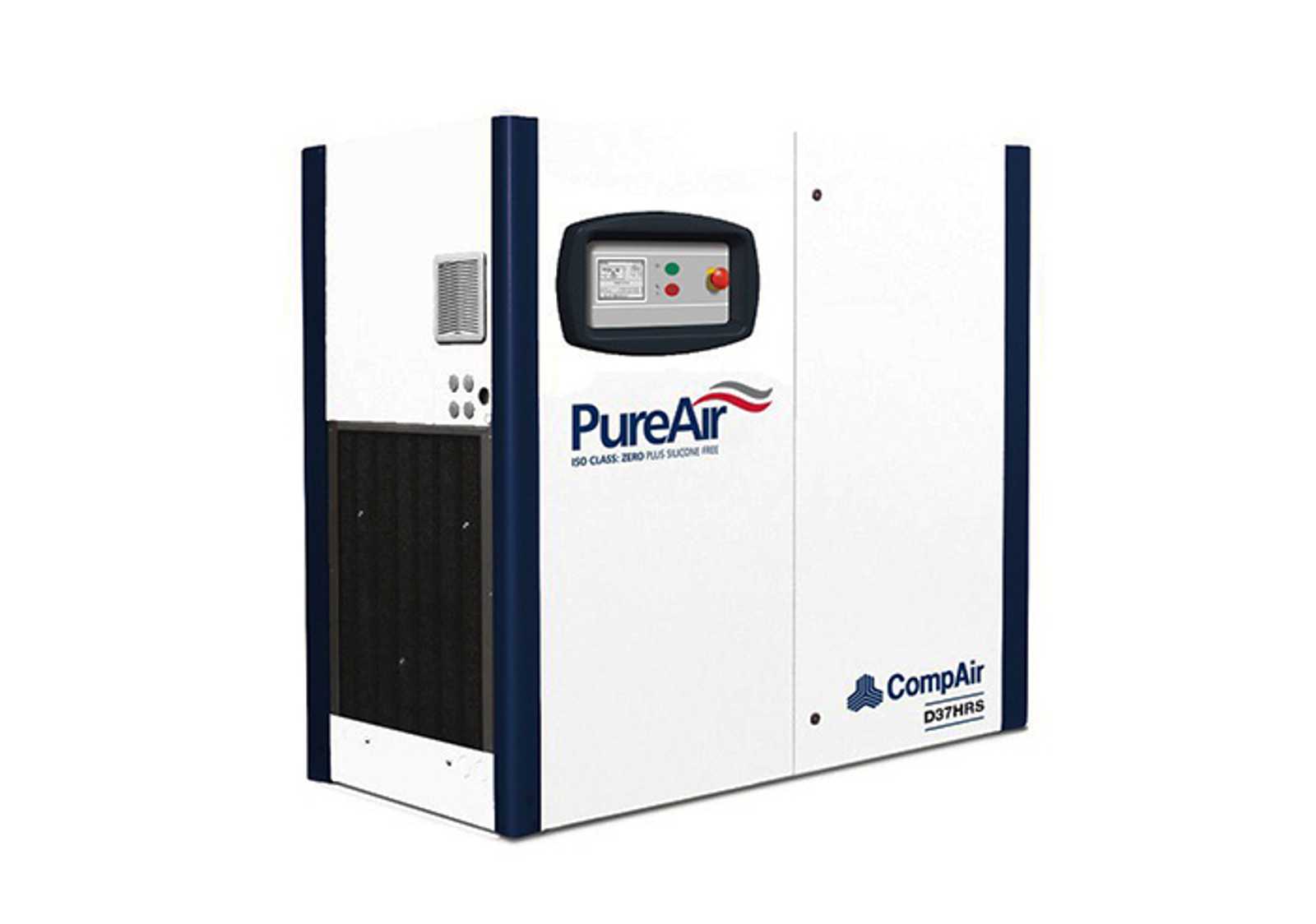

DH series oilfree screw air compressor (37kW)

CompAir DH - 100% air purity that meets stringent quality standards

These oil-free air compressor models contain absolutely no oil anywhere in the compressor and have been certified ISO 8573-1 Class Zero (2010) and silicone free.

Water injected, silicone free and oilfree air

Industries such as Electronics, Chemical, Pharmaceutical, Food and Beverage depend upon pure oil-free compressed air as a safe, clean energysource to drive production lines. Sometimes the air comes intodirect contact with the product being created, so it is criticalthat the purity of this air is maintained at all times. You cansee how this is achieved by the DH series in this video - click the design tab, to watch this. The DH Series comprises of the following features:

Single-stage, direct-driven compression element maximises efficiency and minimises maintenance
High quality water injection lubricates, cools and seals the compression process, maximising efficiency
No gearbox means no need for associated oil lubrication
Low bearing loads and low speeds mean sealed-for-life bearings can be used, requiring no oil lubrication
Regulated speed technology available to reduce energy costs
Comprehensive control ensures safe and reliable operation and includes remote communication capability

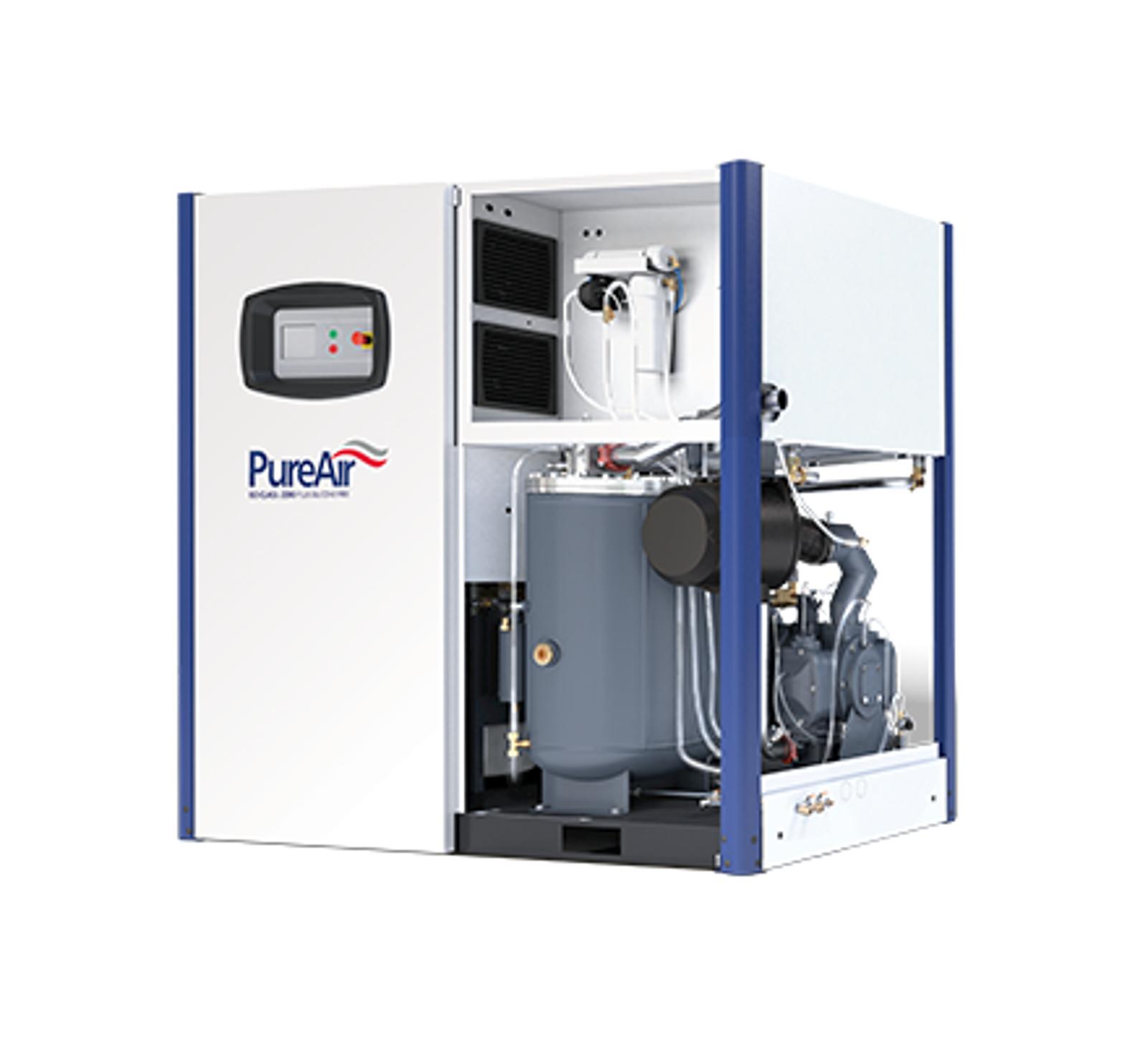

Fully packaged and silenced enclosure reduces noise and simplifies installation

The unique design achieves lower speeds combined with lower operating temperatures - both resulting in high efficiency and reduced component wear. Using a single-stage, direct-driven motor without gears or belts, maximises efficiency. Limiting the compressed air to the application demand with regulated speed ensures that no energy is wasted.

DH compressors have significantly fewer moving parts than comparable machines, meaning there is less to go wrong, while lower speeds and balanced bearing loads extend the compression element service life for low-cost operation.

With exceptionally low running temperatures of less than 60°C near isothermal compression is achieved. This also eliminates the need of an internal aftercooler and associates power consumption reducing pressure drop to the minimum.

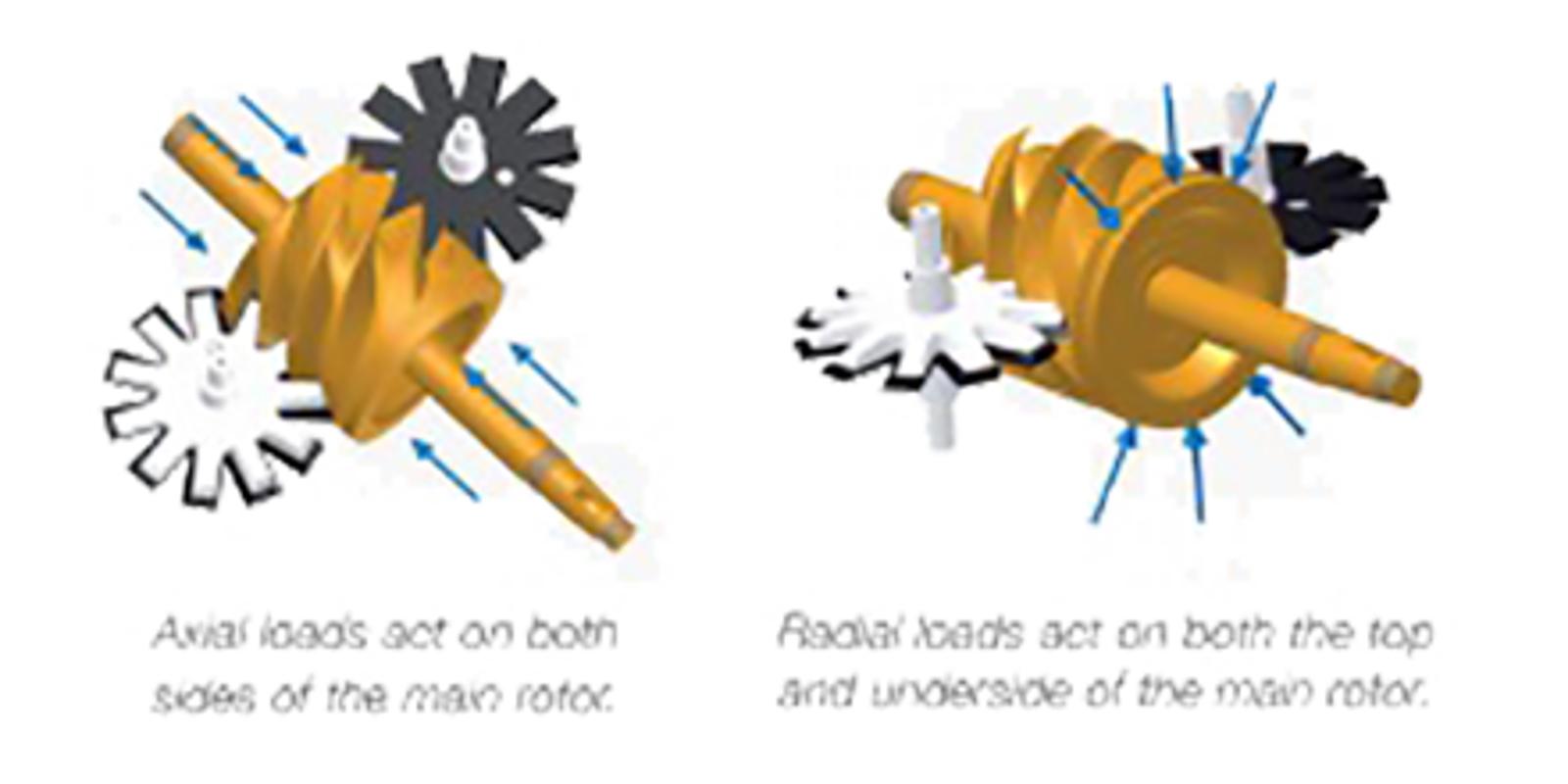

The compression loads are balanced resulting in low bearing loads and highest reliability, watch this video to see how the DH works:

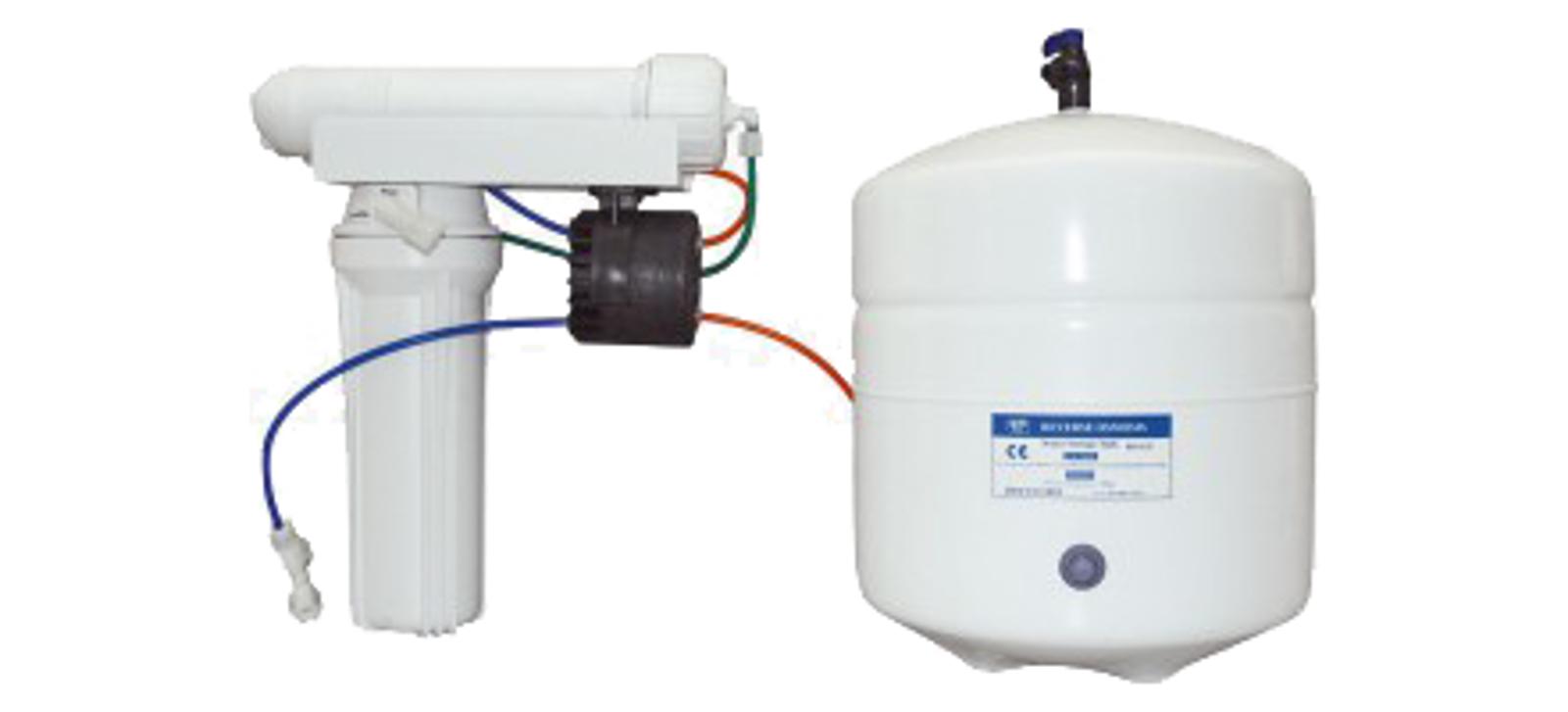

The tried and tested reverse osmosis filtration provides high quality purified water to lubricate, seal and cool the compression process. Using a permeate pump the water required is reduced to a minimum.

dh series oilfree compressor design schemas

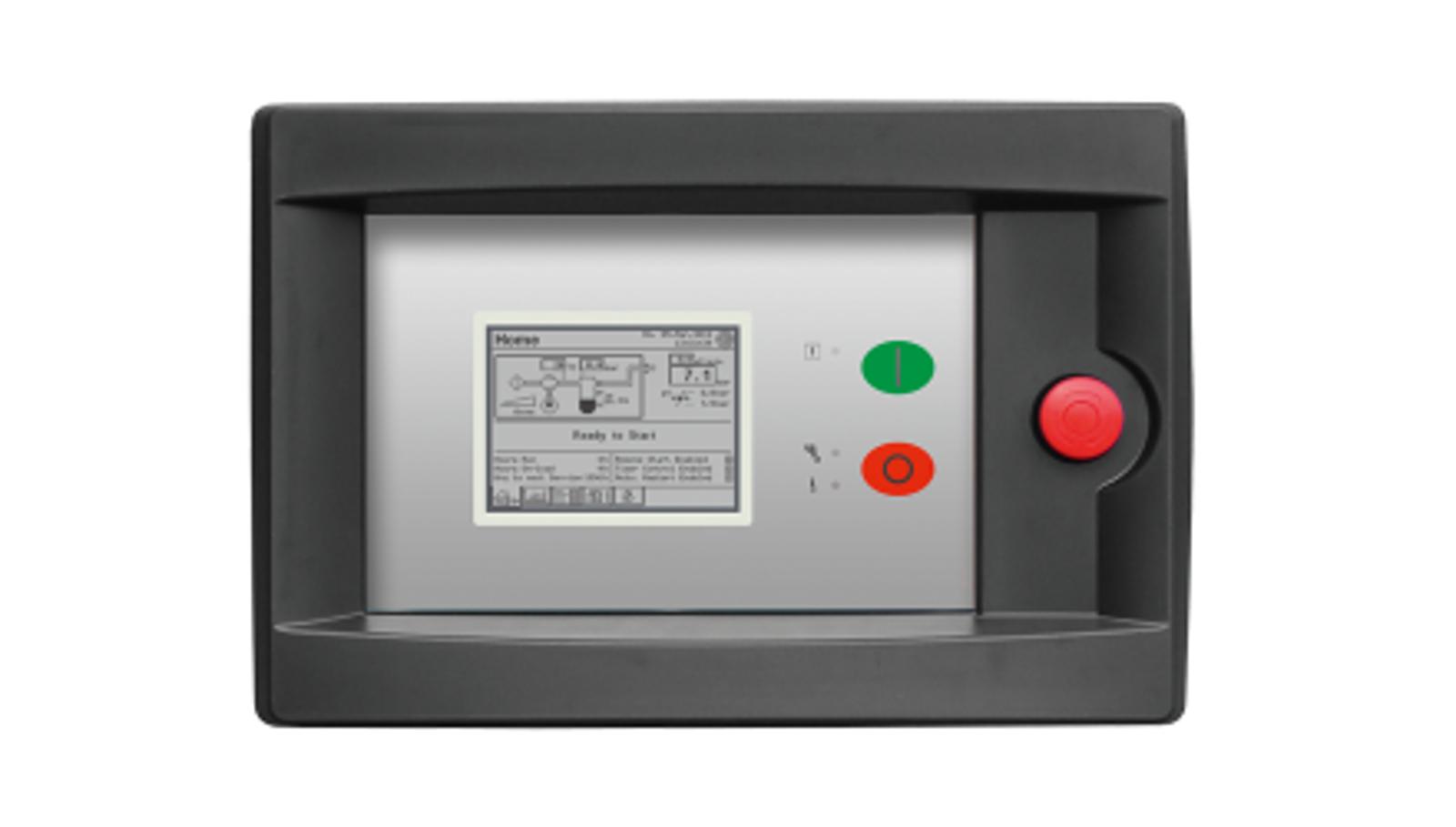

Delcos XL touch-screen controller

The multilingual Delcos XL control system ensures reliable operation and protects your investment by continuously monitoring the operational parameters, which is essential for reducing cost of ownership.

Precise monitoring for exceptional operational reliability
- Ambient pressure and temperature
- Inlet and outlet pressure and temperature at both stages
- Network pressure and temperature
- Oil / water pressure and temperature
- Oil / water level
- … and many more
High resolution, easy-to-use touch-screen panel
User-friendly clear menu structure
Integrated SD card for in-depth analysis of monitored machine parameters
Trend diagrams for
- Network pressure
- Motor speed (regulated speed models)
- On load hours / total running hours and average volume flow
- Weekly average volume flow
Optional base load sequencing

Europe

Africa, Middle East & India

Asia Pacific

Global

Benefits

Water injected, silicone free and oilfree air

Design

Controller

Delcos XL touch-screen controller

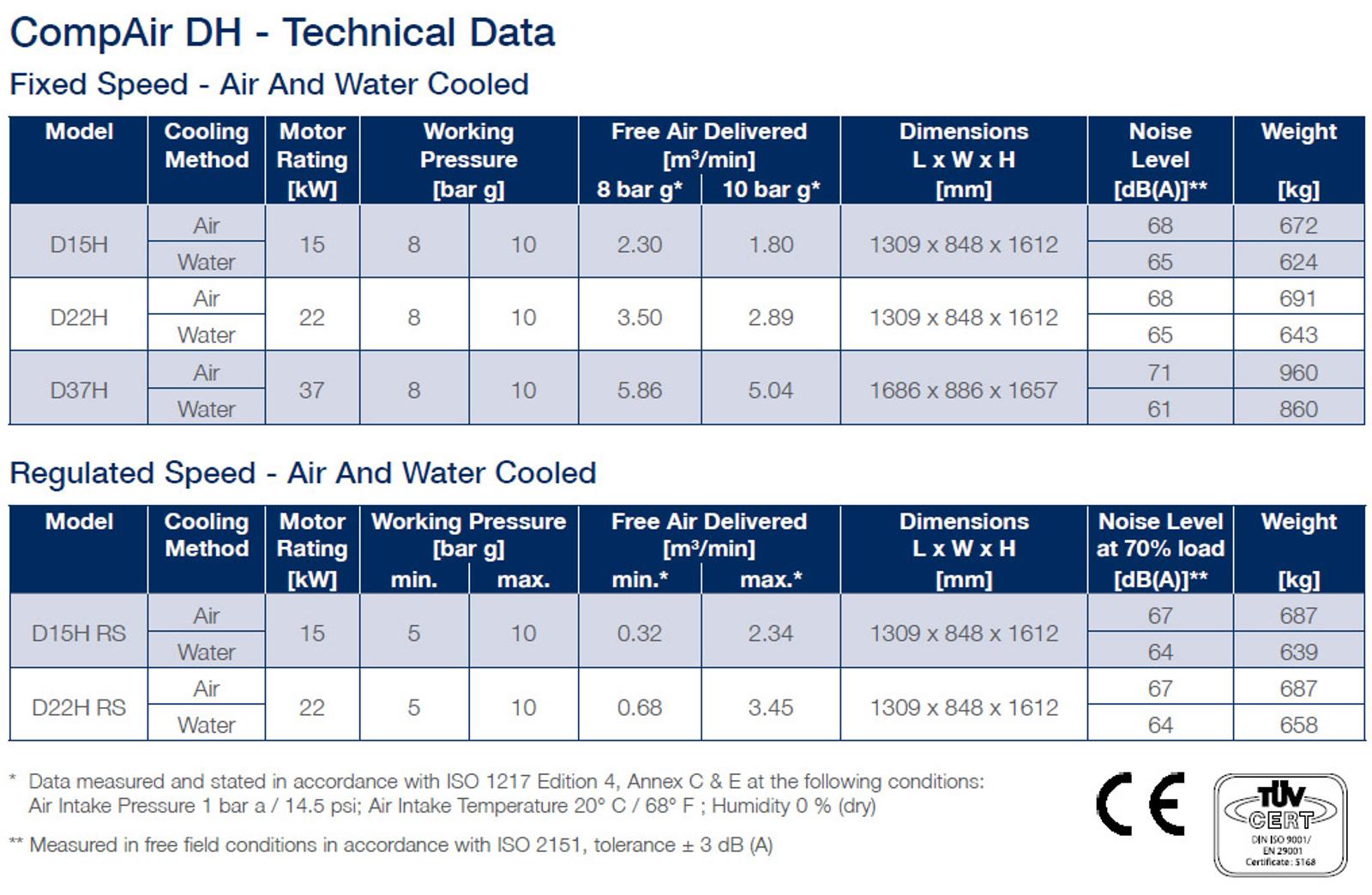

Technical Data
