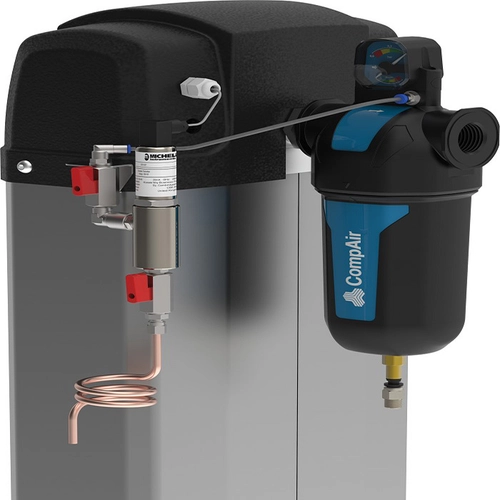

By combining the proven benefits of desiccant drying with modern design, CompAir provides an extremely compact and reliable system to dry and clean compressed air efficiently.

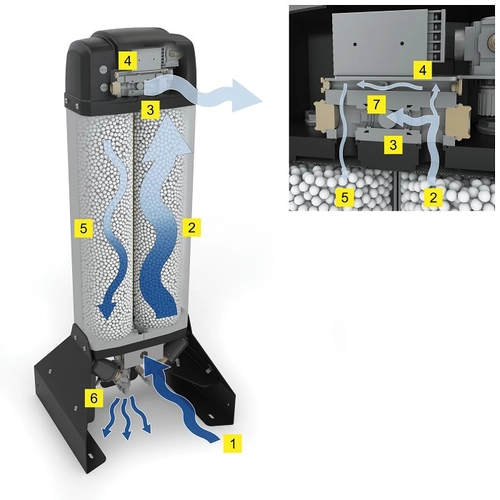

The CompAir A-Series of heatless regenerative desiccant dryers have proven to be the ideal solution for many thousands of compressed air users worldwide in a wide variety of industries.
High Air Quality:
Delivers ISO Class 2 or Class 1 pressure dew point air for critical applications; high efficiency pre and post-filters provide constant high air quality, protecting downstream air from contamination.
Proven electronic control performance indicators, extruded aluminium with anodisation and epoxy painting, and NEMA 3/IP54 Protection (also suitable for outdoor installation) make desiccant dryers durable and high-strength.
Total Cost of Investment:
Reduced cost of ownership with point of use design to treat only the required air, conservative pressure drop 0.2 Barg, and purge reduction on compressed air demand (on/off-load).
Ease of Use:
User-friendly electronic interface with alarm indicators available for models 40 and above.
Modular dryers feature an optimised design for simplified maintenance and preventative maintenance alerts (models 40 and above).
Compact & Flexible Solution:
Space-saving design for optimised installation with air inlet and outlet in the back of unit and connection piping can come from right or left. Model up to 0.42 m3/min can be wall-mounted or installed horizontally
Extended rated pressure range from 4 to 14 Barg and increased airflow range coverage up to 300 m³/h. Guaranteed class 2 (-40°C) and optionally class 1 (-70°C) pressure dew point.
Longer Cycle Life:
Modular dryers have a longer cycle time, 10 minutes, than most competitors (4 to 8 minutes maximum).
