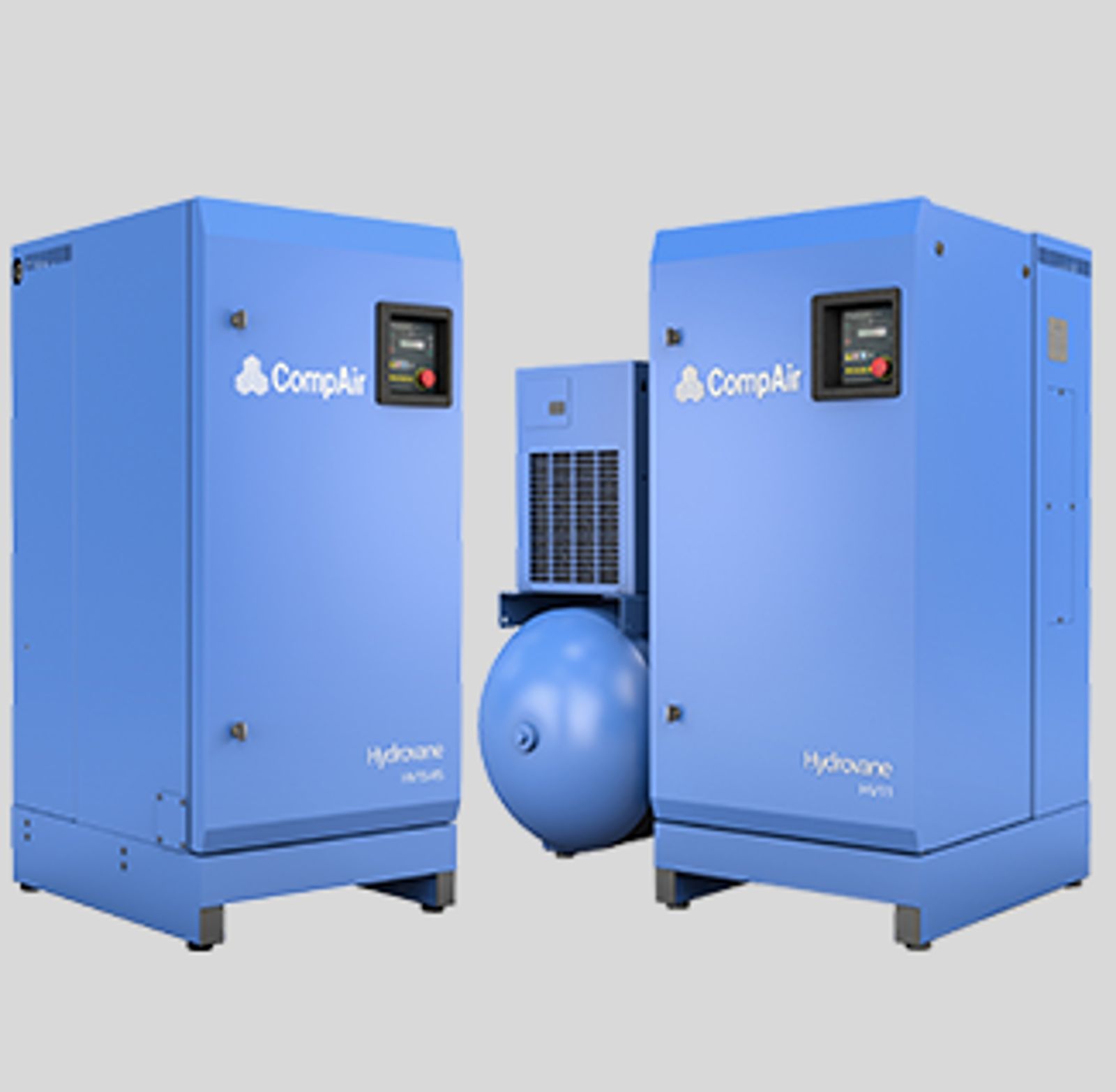

HV 11 - 22 Series Rotary Vane Compressors

Hydrovane HV 11 - 22 series is enclosed for quiet operation, and with a small footprint and low noise levels these compressors can be conveniently located at the point of use.

Known for their industry-leading reliability and versatility, Hydrovane compressors have become a market favourite, loved for their durable design and cost-effective performance. Over three-quarters of a million Hydrovane compressors have been installed worldwide, strengthening their position as a tried and trusted compressed air technology.

Key Facts

Enclosed Floor Mounted

  • 50/60Hz
  • 11-22kW
  • 6-10 bar
  • 1.37 to 3.60 m3/min
  • 48.4 to 127 cfm
  • Complete package options available with integrated air dryer and receiver
  • Regulated Speed (RS) options available to match output to air demand
  • iConn remote monitoring as standard

Versatile & reliable by design

Quiet as standard

With noise levels as low as 66 dB(A) a Hydrovane can be located at the point of use.

High quality air

Clean, dry and pulse free straight from the outlet means less downstream equipment required.

Slow speed

1450 - 2200 rpm speed operation results in low noise, low stresses and long life.

Direct drive

No gears, no belts. Up to 100,000+ operating hours due to its simple integral design.

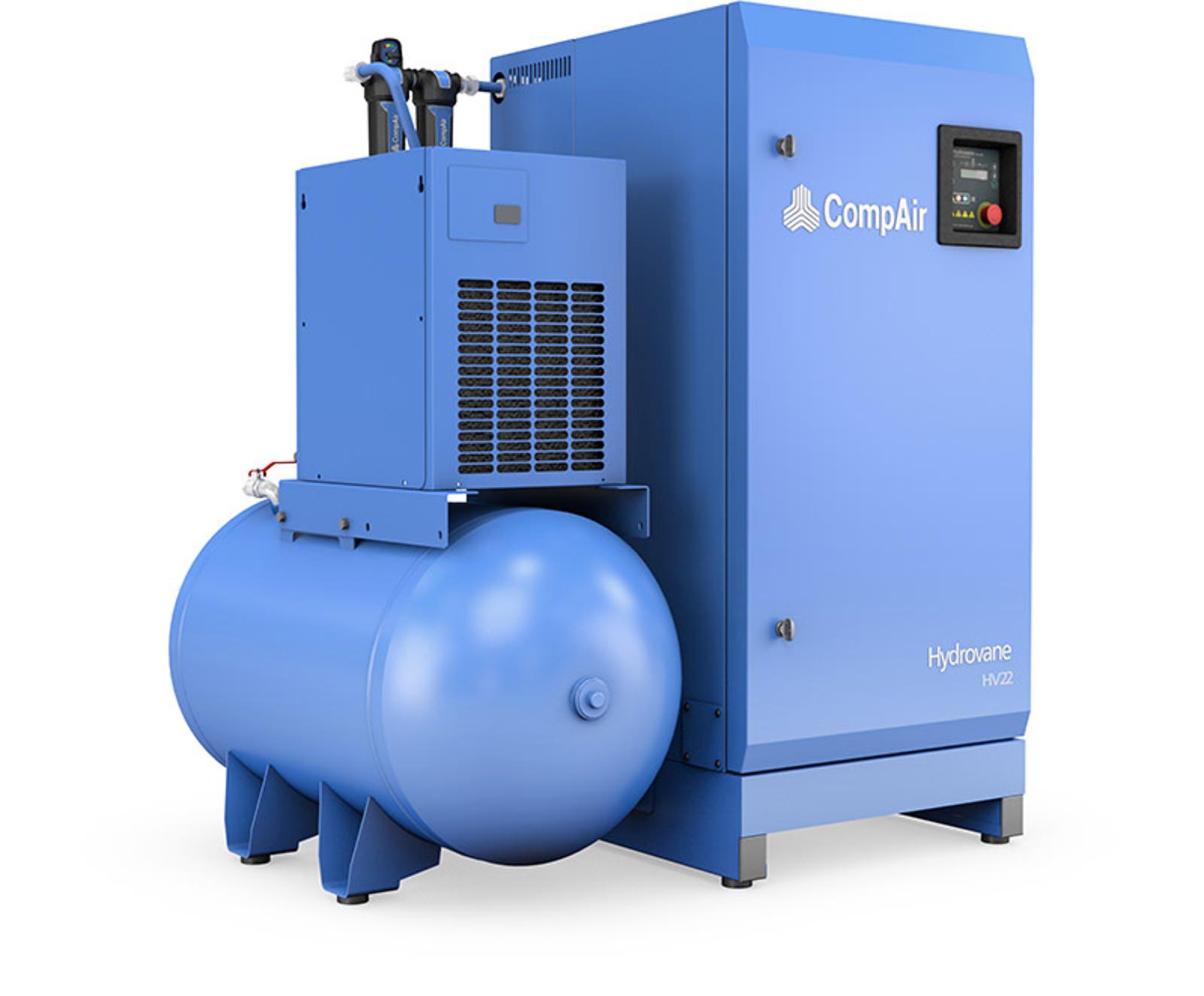

Hypac 4-22kW ERD

Fixed & Regulated Speed (RS) & 5 Series SE ACA 1.1-4kW Integrated Rotary Vane with Receiver, Dryer & Filters. You can save even further with our most comprehensive offering for optimum convenience. This solution is fully packaged with integrated receivers, refrigerant dryers and filtration, offering the best solution for your compressed air needs.

  • Complete Package
  • Integrated Refrigerant Dryer or Membrane Dryer
  • Integrated Receiver
  • Filter Pack
  • 50 Hz
  • 1.1 - 22 kW
  • 6 - 10 bar
  • 0.14 - 3.5 m3/min
  • 4 - 125 cfm
HV22 AERD HYPAC hyrovane air package image

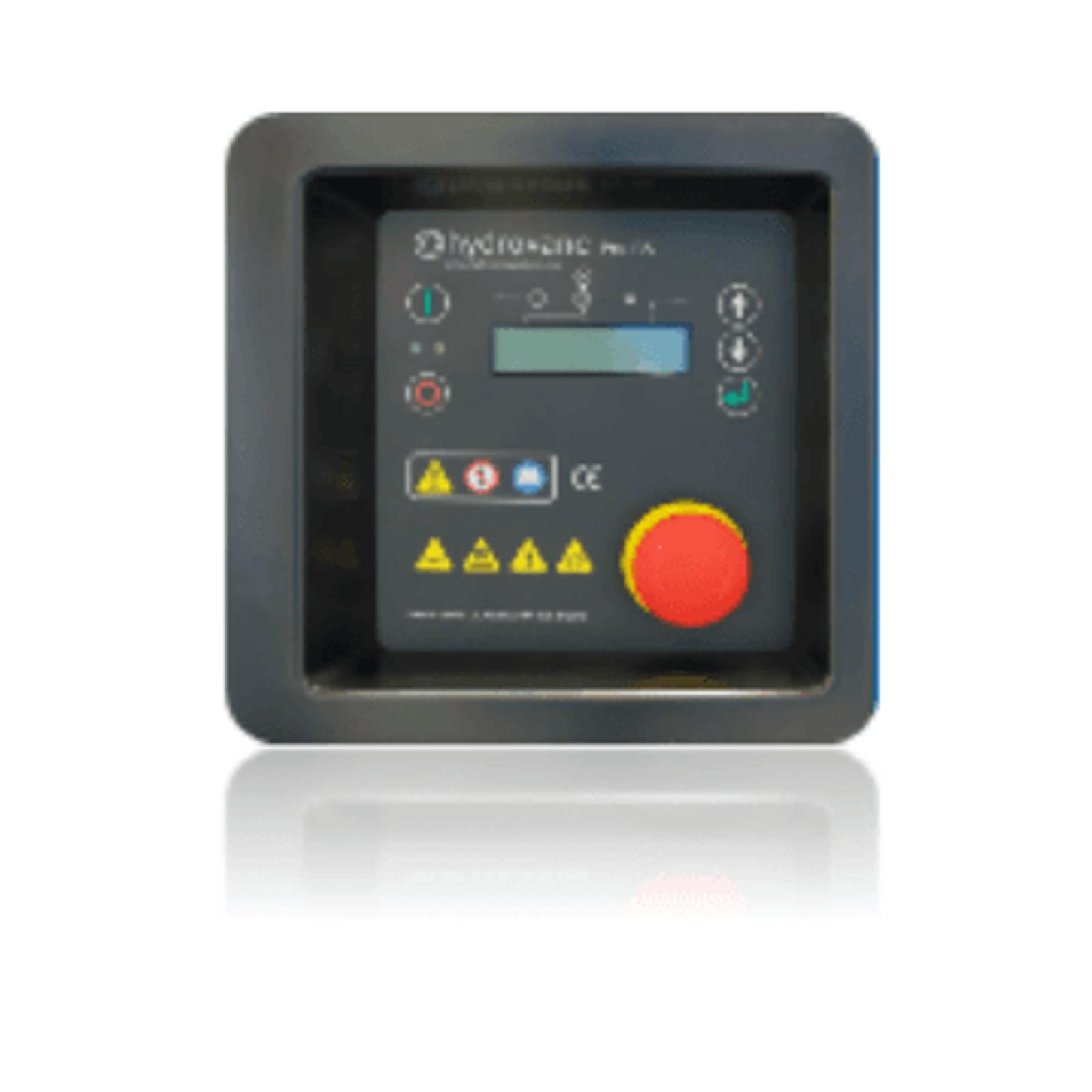

Hydrovane Pro Electronic Controller – at the heart of your compressor’s performance

Hydrovane Pro puts you in complete control of your compressed air system with innovative features such as:

  • Timer Control
  • Second Pressure Setting
  • Status Display
  • Real-Time Clock
  • Error Logs
  • Digital Inputs
  • Group Faults Outputs
  • MODBUS RTU
  • Flash Programmable
  • Sequencer Capability

All Hydrovane by CompAir compressors, both Fixed and Regulated Speed in the 4 to 22 kW model range, are fitted with the Hydrovane Pro Electronic Controller as a company standard. With simple-to-use, efficient electronics, our intelligent control system helps protect your investment with unmatched operational monitoring.

iConn by CompAir

iConn utilises the technological benefits of IIoT and I4.0 to provide smart, proactive real-time monitoring that delivers in-depth knowledge of your compressor’s operational health and performance. This enables total peace-of-mind protection and accurate production planning by generating comprehensive statistics and insights. iConn detects potential issues before they become a problem by promoting fast response times that minimise machine downtime. Our HV11-22 model range are equipped with our iConn Industry 4.0 solution as a standard.

Hv-11-22-series controller

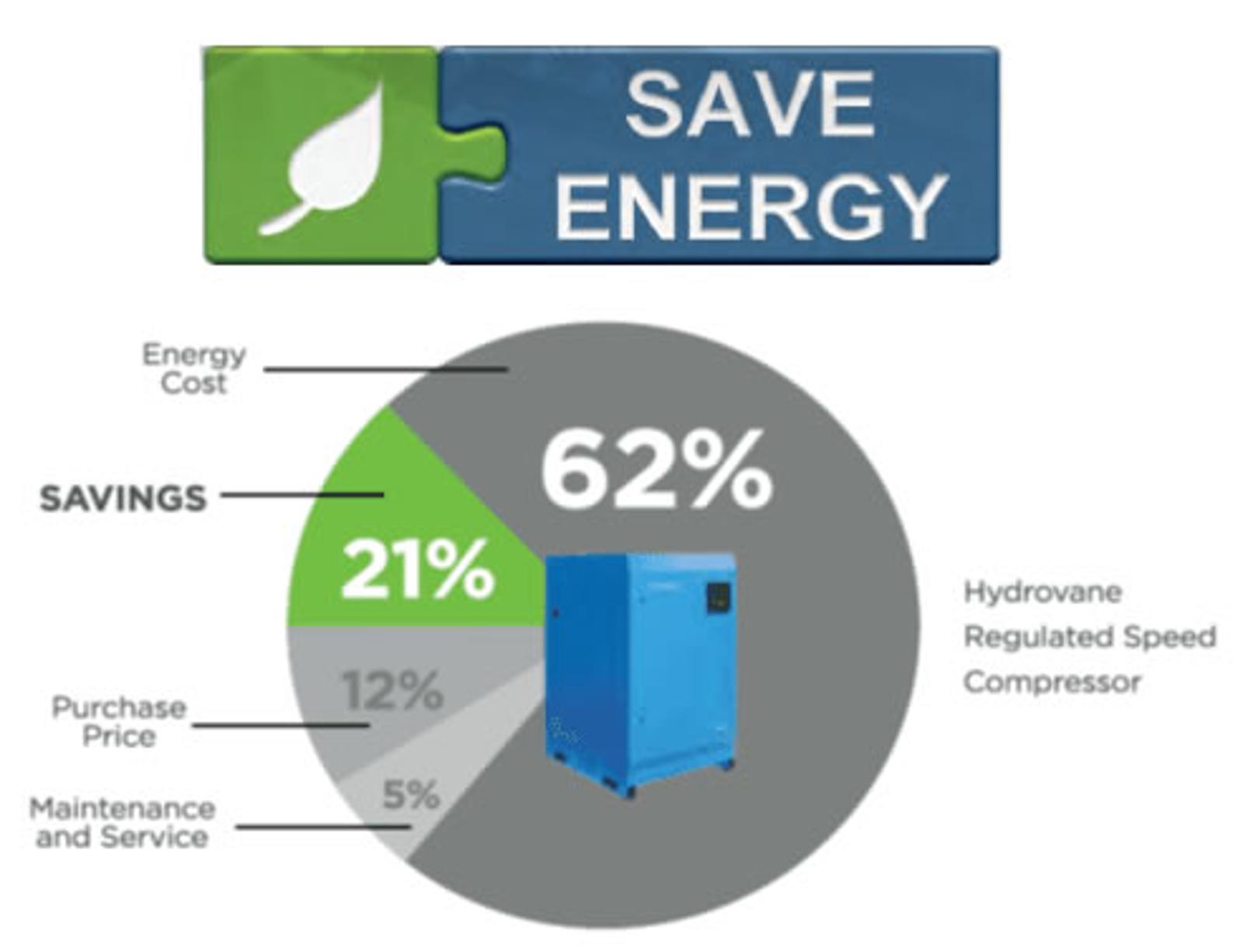

How does Hydrovane compressor save energy?

Regulated Speed (RS)

RS control ensures optimum load conditions throughout the compressor's speed range

> delivering maximum efficiency

Air Intake Modulation

Air intake modulation at minimum speed delivers further energy savings

> To match the reducing air demand

Reduced Energy Venting System (REVS)

> Improved part-load and off-load performance

Save energy diagram

Warranty that delivery complete peace of mind

The Hydrovane Advance 10 extended warranty programme is a unique market leading compressor care package designed to deliver comprehensive warranty cover for up to 10 years or 48,000 operating hours on all Hydrovane compressor airends.

HV advance guaranteed warranty badge
